How to Isolate Boat Batteries

Battery isolation is one of the most important parts of a reliable marine electrical system. A well-designed setup keeps the engine start battery, auxiliary service battery and generator battery separated so that one discharged battery cannot disable the entire boat.

This guide explains a simple and safe way to isolate three common onboard battery banks:

• Engine start battery — used only for starting the main engine.
• Auxiliary / service battery — used for lights, pumps, instruments, fridge, electronics and hotel loads.
• Generator battery — used only for starting the generator.

Important Safety Note

Marine DC systems can cause fire, equipment damage or battery explosion if wired incorrectly. Always use marine-grade cable, correct fuse protection and proper crimped terminals. If you are not confident with DC electrical work, ask a qualified marine electrician to inspect the installation.

Goal of Battery Isolation

The goal is simple: each critical system should have its own battery source, and that battery should not be accidentally drained by another system.

Recommended Components

• Engine battery switch
• Auxiliary battery switch
• Generator battery switch
• Main DC fuses or circuit breakers close to each battery
• Positive busbars
• Negative busbar
• Battery combiner, VSR, ACR or DC-DC charger
• Marine-grade tinned copper cable
• Heat-shrink terminals
• Battery labels

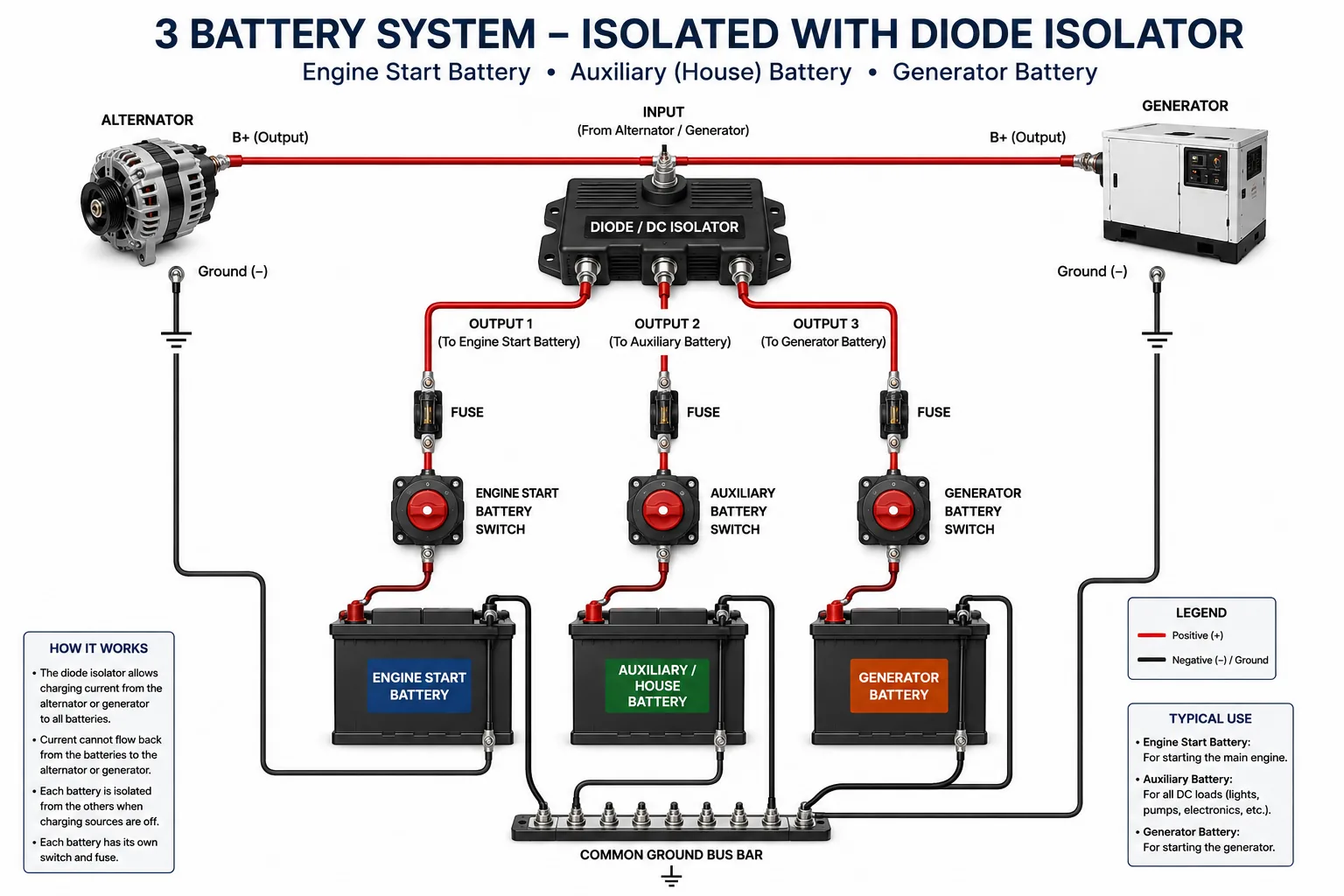

Basic System Layout

Each battery should have its own positive cable protected by a fuse close to the battery. From the fuse, the cable goes to a dedicated battery switch. From the switch, power goes to the correct circuit or busbar.

• Engine battery → fuse → engine battery switch → engine starter circuit
• Auxiliary battery → fuse → auxiliary battery switch → DC service panel
• Generator battery → fuse → generator battery switch → generator starter circuit

All battery negatives normally connect to a common negative busbar, unless the equipment manufacturer requires a different configuration.

Step 1: Identify Each Battery

Before changing any wiring, label every battery clearly:

• ENGINE START
• AUX / SERVICE
• GENERATOR START

Also label the existing positive and negative cables. Never rely only on cable color, especially on older boats where wiring may have been modified many times.

Step 2: Disconnect All Power

Turn off all battery switches and disconnect shore power. Then disconnect the negative terminal from each battery before working on the positive cables.

This reduces the risk of accidental short circuits while installing switches, fuses or busbars.

Step 3: Install Fuses Close to Each Battery

Each positive battery cable should be protected by a fuse or breaker as close to the battery as practical.

• Engine start battery: fuse sized for engine starting circuit and cable size
• Auxiliary battery: fuse sized for service panel and cable size
• Generator battery: fuse sized for generator starting circuit and cable size

The fuse protects the cable, not the device. Always size the fuse according to the cable rating and equipment requirements.

Step 4: Install Separate Battery Switches

Use one switch per battery bank. This makes the system easier to understand and safer to troubleshoot.

• Engine switch controls only the engine start circuit.
• Auxiliary switch controls only domestic/service loads.
• Generator switch controls only the generator start circuit.

Avoid using one large selector switch for everything unless the whole system is designed around it. Separate switches are usually clearer for charter boats and maintenance teams.

Step 5: Connect the Engine Start Battery

1. Connect battery positive to the engine battery fuse.
2. Connect the fuse output to the engine battery switch input.
3. Connect the switch output to the engine starter positive terminal or engine positive bus.
4. Connect battery negative to the common negative busbar or engine ground point.

The engine battery should remain dedicated to starting the main engine. Do not connect fridge, lights, pumps or instruments directly to this battery unless specified by the vessel design.

Step 6: Connect the Auxiliary Battery

1. Connect auxiliary battery positive to the auxiliary battery fuse.
2. Connect the fuse output to the auxiliary battery switch input.
3. Connect the switch output to the domestic DC distribution panel or service busbar.
4. Connect auxiliary battery negative to the common negative busbar.

The auxiliary bank powers normal onboard loads such as lights, fridge, freshwater pump, navigation electronics, USB chargers and other service equipment.

Step 7: Connect the Generator Battery

1. Connect generator battery positive to the generator battery fuse.
2. Connect the fuse output to the generator battery switch input.
3. Connect the switch output to the generator starter positive terminal or generator control panel supply.
4. Connect generator battery negative to the common negative busbar or generator ground point.

The generator battery should be isolated from house loads. This keeps the generator available even if the auxiliary battery bank becomes discharged.

Step 8: Add Controlled Charging Between Banks

Battery isolation does not mean the batteries cannot be charged together. It means they should only be connected through a controlled charging device.

Common options include:

• VSR / ACR: automatically combines batteries when charging voltage is detected.
• DC-DC charger: better for lithium batteries or mixed battery types.
• Battery combiner: allows controlled emergency or charging connection.
• Separate alternator outputs: used on larger systems.

Do not permanently connect all battery positives together. That defeats isolation and can allow one battery bank to drain another.

Step 9: Add Emergency Parallel Function Carefully

Some boats include an emergency parallel switch that allows the auxiliary battery to help start the engine if the engine battery is flat.

This can be useful, but it must be installed correctly with suitable cable size and switch rating. The emergency parallel switch should normally remain OFF.

Step 10: Test the System

After wiring is complete, test one circuit at a time.

1. Turn on only the engine battery switch. Confirm the engine panel powers up and the domestic panel stays off.
2. Turn off the engine switch.
3. Turn on only the auxiliary switch. Confirm domestic loads work and the engine circuit stays isolated.
4. Turn off the auxiliary switch.
5. Turn on only the generator switch. Confirm the generator panel powers up and other circuits stay isolated.
6. Verify charging devices operate correctly when the engine, charger or generator is running.

Common Mistakes

• Connecting all battery positives together permanently
• No fuse close to the battery
• Using automotive cable instead of marine-grade tinned cable
• Undersized battery cables
• Confusing negative busbar with AC ground
• Leaving service loads connected to the engine start battery
• Installing a battery switch in the negative cable instead of the positive cable

Simple Text Diagram

ENGINE START BATTERY
+ → Fuse → Engine Battery Switch → Engine Starter / Engine Positive Bus
- → Common Negative Busbar

AUXILIARY BATTERY
+ → Fuse → Aux Battery Switch → DC Service Panel / House Busbar
- → Common Negative Busbar

GENERATOR BATTERY
+ → Fuse → Generator Battery Switch → Generator Starter / Generator Panel
- → Common Negative Busbar

Charging between banks:
Alternator / Charger / Solar → ACR, VSR or DC-DC Charger → Battery Banks

Maintenance Checklist

• Check battery terminals monthly.
• Inspect fuses and fuse holders for heat marks.
• Confirm switches operate smoothly.
• Check cable insulation for chafe.
• Measure charging voltage at each battery.
• Label every cable and switch clearly.
• Test emergency parallel function if installed.

Conclusion

A proper battery isolation setup protects the boat from accidental discharge and makes the electrical system easier to diagnose. Keep the engine start battery dedicated to the engine, the auxiliary battery dedicated to service loads, and the generator battery dedicated to the generator. Use fuses, switches and controlled charging devices to keep the system safe and reliable.

Boat Battery Setup Diagram

A proper boat battery setup diagram helps separate the engine start, house and generator batteries while allowing safe charging through a VSR, ACR or DC-DC charger.

ENGINE BATTERY -> Fuse -> Battery Switch -> Starter
HOUSE BATTERY  -> Fuse -> Battery Switch -> DC Panel
GENERATOR BATTERY -> Fuse -> Battery Switch -> Generator

Alternator / Charger / Solar
        |
     ACR / VSR / DC-DC
        |
     Battery Banks

Generator Battery Connection Diagram

The generator battery should have its own fuse, battery switch and starter circuit. It should not normally power domestic loads.

Boat Battery Cable Size and Fuse Calculator

This boat battery cable size calculator estimates current draw, voltage drop, recommended marine cable cross-section and suitable fuse size for normal DC circuits. It uses a lookup table for copper conductors inside insulation and then checks voltage drop.

Important distinction: normal DC loads and starter circuits are not the same. Lights, pumps, electronics, chargers and small DC loads are usually calculated as continuous or normal loads. Engine starters, generator starters, windlasses, bow thrusters and large inverters can draw several hundred amps or more for short periods. These high-current circuits must be checked against the equipment manual, motor cranking current, cable length, terminal rating and fuse/breaker type.

The calculator chooses the smallest cable size that satisfies both conditions:

• The cable must carry the expected current safely according to the lookup table.
• The cable must keep voltage drop within the selected limit.

Marine Cable and Fuse Lookup Table

The calculator uses the lookup table below. The fuse value is selected to protect the cable, not the connected device. The device itself may require a smaller fuse according to the manufacturer manual. For engine starting circuits, some installations use a fuse or MRBF/ANL/Class-T protection only where permitted by the engine manufacturer and marine standard being followed.

Starter Current Warning

Engine and generator starter current is often much higher than normal running current. A small diesel engine may draw a few hundred amps during cranking, while larger engines can draw more. Because cranking is a short-duration event, some cable charts and equipment manuals allow different assumptions than continuous-load circuits. Do not size starter cables from watts alone unless the starter motor data is known.

For starter circuits, use the actual cranking current from the engine or generator manual whenever possible. If the required current is higher than the table, the circuit needs a manufacturer-approved cable size and over-current protection design rather than a generic online estimate.

Frequently Asked Questions

Should the engine battery power house loads?

No. The engine start battery should remain dedicated to starting the engine.

Can I connect all boat batteries together?

No. Use a VSR, ACR or DC-DC charger to charge battery banks while keeping them isolated.

What is the best boat battery setup?

Most cruising boats use one engine start battery, one house battery bank and one generator battery with dedicated switches and fuse protection.
